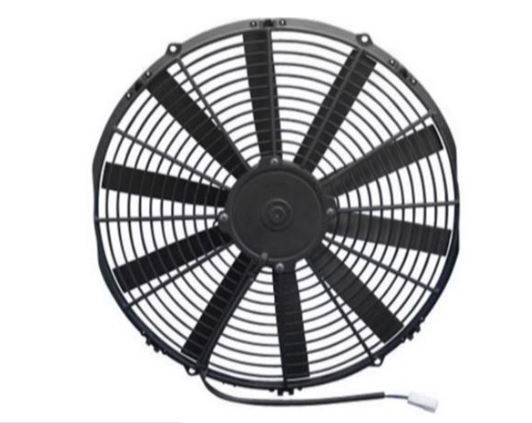

SPAL - 30100401 - VA18-AP10/C-41S BT MC
SPAL Type:
VA18-AP10/C-41S BT MC
- Voltage: 12v
- Airflow direction is Blowing
- Total Depth: 53mm
- Total Width: 412mm
- CFM: 1074
- Included is a Standard Connector with Wire Harness
Technical Information
Fan Blade (Ø) |
385mm / 15.2” |
Voltage |
12V |
Direction of Airflow |
Blowing |
Suggested Mounting Torque |
3(+1/-0) Nm with screw M5 |
IP Rating |
IP68 |
Standard Features |
Waterproof Motor - IP68 |
|
Long Life |
Weight |
Approx. 2.0kgs |
SPAL Description |
VA08-AP10/C-41A BT |
|
BT: Standard Connector |
|
MC: Metal Cover |
