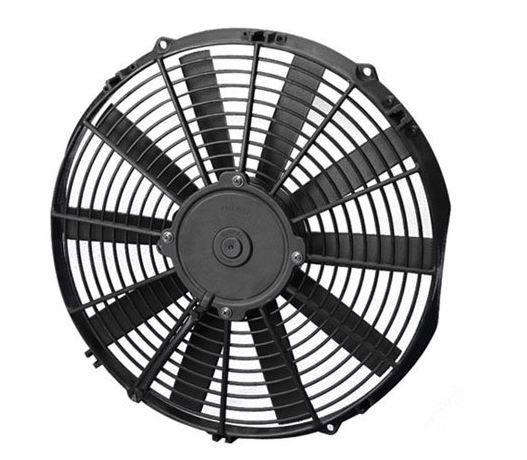

SPAL - 30100399 - VA13-AP9/C-3S BT MC
SPAL Type:
VA13-AP9/C-35S BT MC
- Voltage: 12v
- Airflow direction is Suction
- Total Depth: 53mm
- Total Width: 360.7mm
- CFM: 1032
- Included is a Standard Connector with Wire Harness
Technical Information
| Fan Blade (Ø) |
330mm / 13” |
| Voltage |
12V |
| Direction of Airflow |
Suction |
| Suggested Mounting Torque |
3(+1/-0) Nm with screw M5 |
| IP Rating |
IP68 |
| Standard Features |
Waterproof Motor - IP68 |
|
Long Life |
| Weight |
Approx. 2.0kgs |
| SPAL Description |
VA13-AP9/C-35S BT MC |
|
BT: Standard Connector |
|
MC: Metal Cover |
