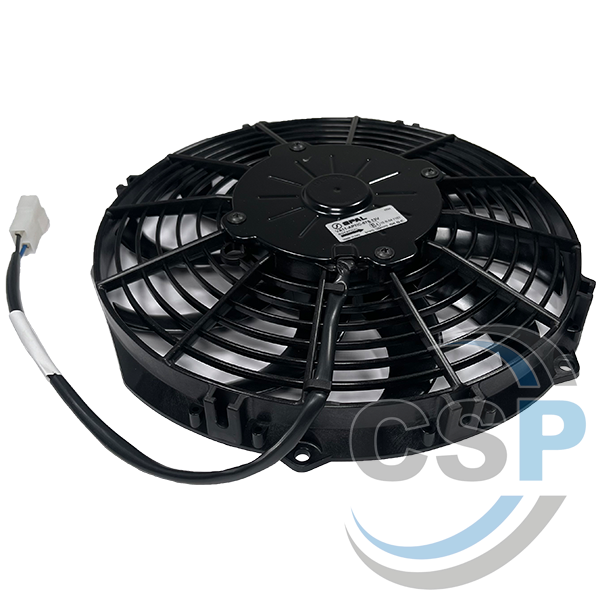

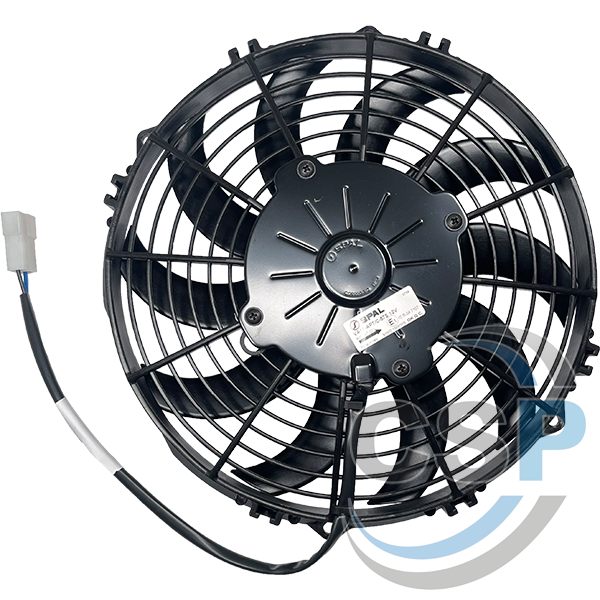

SPAL - 30100320 - VA11-AP7/C-57S
SPAL Type:
VA11-AP7/C-57S
- Voltage: 12v (Tested at 26v)
- Airflow direction is Blowing
- Total Depth: 52mm
- Total Width: 283.5mm
- CFM: 844
- Included is a Standard Connector with Wire Harness
Technical Information
| Fan Blade (Ø) |
255mm / 10” |
| Voltage |
12V |
| Direction of Airflow |
Blowing |
| Suggested Mounting Torque |
3(+1/-0) Nm with screw M5 |
| IP Rating |
IP68 |
| Standard Features |
Waterproof Motor - IP68 |
|
Long Life |
| Weight |
Approx. 2.0kgs |
| SPAL Description |
VA11-AP7/C-57S |
|
BT: Standard Connector |
|
MC: Metal Cover |
