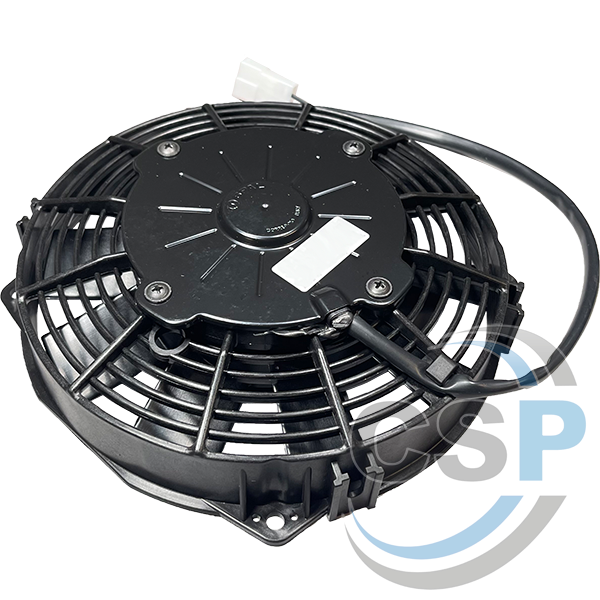

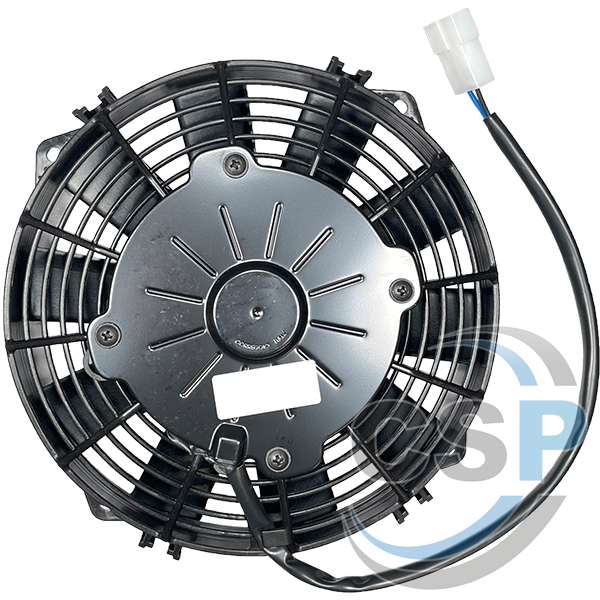

POWERSCREEN - Fan/Hydraulic Motor For 12990326/06761109
SPAL Type:
VA14-AP7/C-34A BT MC
- Voltage: 12v
- Airflow direction is Suction
- Total Depth: 51.1mm
- Total Width: 202mm
- CFM: 366
- Current Draw: 5.3A
- Included is a Standard Connector with Wire Harness
Technical Information
| Fan Blade (Ø) |
190mm / 7.5” |
| Voltage |
12V |
| Direction of Airflow |
Suction |
| Suggested Mounting Torque |
3(+1/-0) Nm with screw M5 |
| IP Rating |
IP68 |
| Standard Features |
Waterproof Motor - IP68 |
|
Long Life |
| Weight |
Approx. 0.9kgs |
| SPAL Description |
VA14-AP7/C-34A BT MC |
